Complex Installs

Standard Fuse Tap with 5A Fuse
Standard Fuse Tap with 5A Fuse  - Image 2

Standard Fuse Tap with 5A Fuse

Price range: $67.50 through $100.00

Standard Fuse Tap with 5A Fuse

Power your accessories the right way.

Our Standard Fuse Tap provides a clean, safe and professional method of adding a fused power source to your vehicle without cutting or modifying the factory wiring. Designed for both professional installers and DIY enthusiasts, it’s the ideal solution for hardwiring aftermarket accessories while maintaining proper circuit protection.

Supplied complete with a 5A Standard (ATO/ATC) blade fuse, it’s ready to install straight out of the packet.

Cost:
Pack of 25: $67.50
Pack of 50: $100

Description

Features

  • Includes 1 × 5A Standard (ATO/ATC) blade fuse
  • Maximum fuse tap current capacity: 30 Amps
  • Suits Standard blade fuse applications
  • Creates a new fused accessory circuit
  • No cutting or splicing into factory wiring
  • Heavy-duty blue crimp terminal for a secure connection
  • Suitable for both 12V and 24V vehicle electrical systems



Perfect For

  • Dash Cameras
  • GPS Trackers
  • UHF CB Radios
  • Hardwire Kits
  • USB Chargers
  • LED Lighting
  • Phone Chargers
  • Other low-current automotive accessories



Specifications

  • Fuse Type: Standard (ATO/ATC)
  • Included Fuse: 5A Standard (ATO/ATC) Blade Fuse
  • Maximum Fuse Tap Rating: 30 Amps
  • Operating Voltage: 12V / 24V

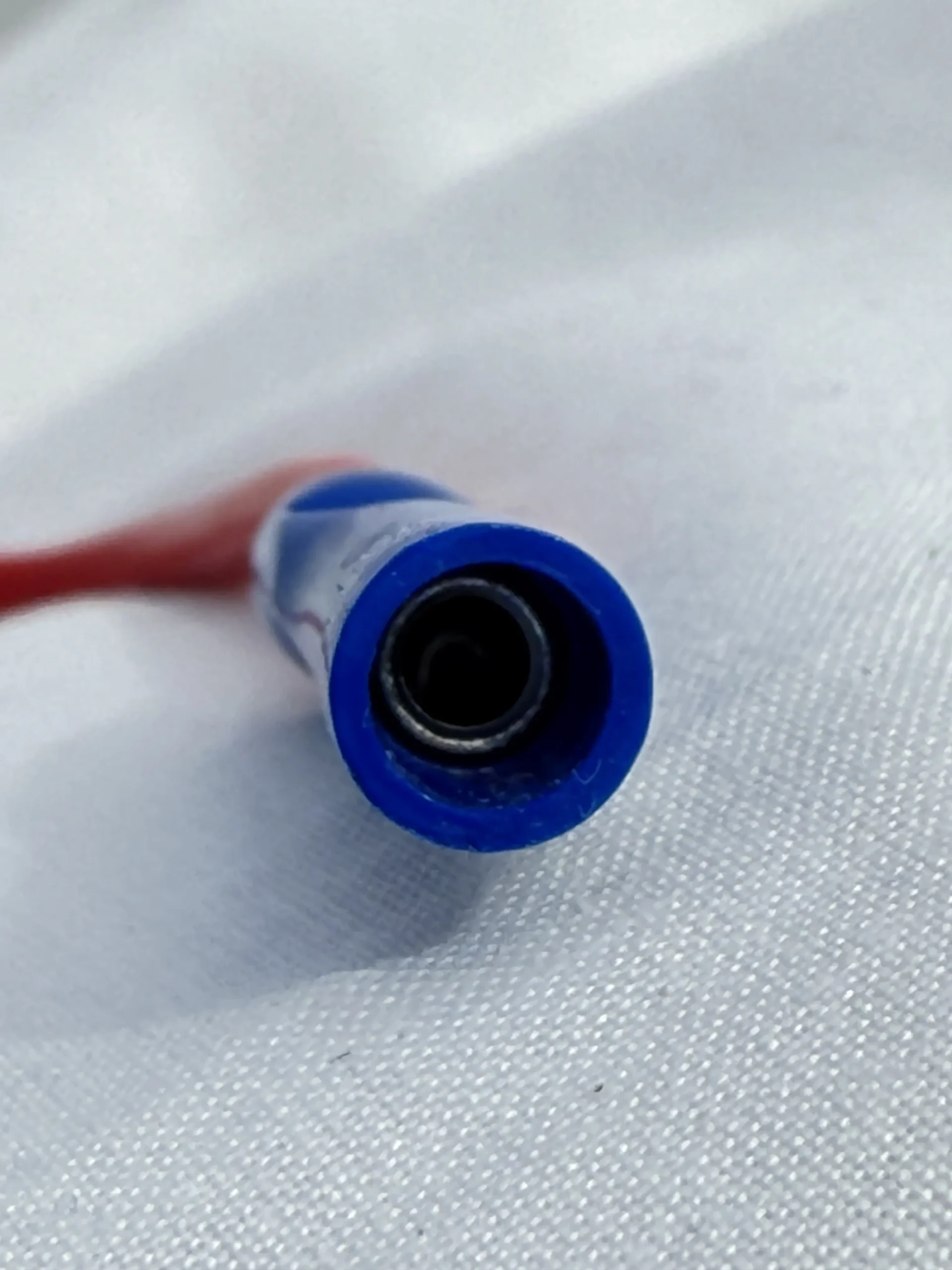

  • Connection: Pre-crimped blue crimp terminal



Package Includes

  • 1 × Standard Fuse Tap
  • 1 × 5A Standard (ATO/ATC) Blade Fuse



Built for Reliability

Unlike many low-cost alternatives, we’ve carried out extensive research and development to ensure every component meets our quality standards. Particular attention has been given to the fuse tap body, fuse holder and blue crimp terminal, using quality conductive materials that provide a strong, reliable crimp and dependable long-term electrical performance.

The result is a fuse tap designed for installers who want confidence in the products they fit.



Important Information

  • The 30A rating refers to the maximum current capacity of the fuse tap itself.
  • A 5A fuse is included with this product.
  • Always select the correct fuse rating for your accessory and ensure the original vehicle circuit remains protected by the appropriate fuse.



Disclaimer

Complex Installs accepts no responsibility for damage, equipment failure or loss resulting from incorrect installation, misuse, overloading, modification of the product, or the use of incorrect fuse ratings. It is the installer’s responsibility to ensure the fuse tap is installed correctly and that the appropriate fuse ratings are used to protect both the original vehicle circuit and the accessory circuit.
